RW40120PT

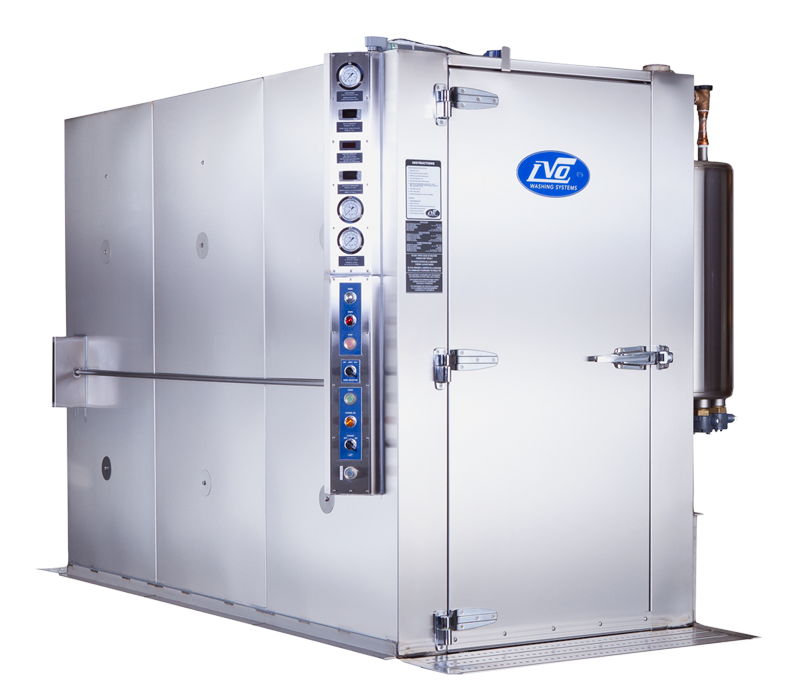

Model RW40120PT Pass Through Rack Washer

Our largest washer, the LVO RW40120PT Pan and Rack Washer is capable of washing almost 1200 pans per hour.  Fully automatic, easy to operate, the RW40120PT is made of a 14 gauge stainless stainless steel cabinet and designed to last a lifetime.  Two powerful pumps with a combined total of 40 Horsepower power the twelve rotating stainless steel spray arms, blasting away soil from your racks, pans, bowls, or utensils.  Then a short, hot water rinse then allows your pans to be clean and sanitized in a matter of minutes.

Specifications:

Wash Capacity: 117 Pans, Utensils, or 140 Quart Mixing Bowls

Pumps: (1) 25 HP & (1) 15 HP – 208, 230, or 460V, 60 cycle, 3 Phase – Recirculates Approximately 280 Gallons per Minute at 50-60 PSI

Timers: Three Preset Wash Times

Wash Tank: 240 Gallon Capacity – Electric, Gas, or Steam Heated

Cabinet: 14 Gauge Heavy Duty Stainless Steel Construction

Rinse Tank: Stainless Steel with four 9 KW electric booster heaters to boost 140°F incoming water to 180°F-195°F sanitizing rinse water

ACCESSORIES:

Utility Racks: Stainless Steel Utility Racks are sturdy and reliable and are built to withstand the day to day operations

• Bun/Sheet Pan
• Cake Pan
• Bowl Rack
• Utensil Basket w/hold-down lid
  *Special racks can be built upon customer request.

Power Venting: 1 HP, 700 CFM Stainless Steel Blower

Resources:

Brochure

Owner’s Manuals

Installation Instructions

Daily Instructions

Pit Dimensions
